Decentralized Inference: A Dual-Layer Architecture for Future AI Workloads

Large Language Models (LLMs) have transformed natural language processing and generative AI solutions, but at the cost of massive inference overheads. Centralized inference in hyperscale data centers introduces cost, latency, and compliance challenges.

This article will examine a dual-layer decentralized inference architecture that distributes model execution across heterogeneous edge and endpoint devices while maintaining reliability, security, and interoperability. The article will also discuss both a high-level workflow and a fine-grained architectural decomposition, highlighting networking standards, cryptographic guarantees, and scheduling optimizations that make this paradigm technically feasible.

Breaking Free from Centralized AI

LLMs with 100B+ parameters are now mainstream, yet their operational cost is prohibitive. Running such models requires:

• GPUs with >80 GB HBM memory,
• Multi-terabit interconnects (NVLink/InfiniBand),
• Optimized runtime kernels (FlashAttention, tensor parallelism).

Cloud platforms provide this, but suffer from:

• Cost Iverheads: Sustaining $10–30/hr GPU nodes make scaling infeasible for many enterprises.
• Latency: A prompt originating in Mumbai but served from Oregon introduces >200ms RTT before even beginning inference.
• Privacy & Regulation: Sending enterprise or personal data to public clouds conflicts with GDPR, HIPAA, and sovereign AI mandates.

A Decentralized LLM Inference System (DLIS) shifts execution from centralized clusters to a mesh of local and heterogeneous devices. Each node executes a share of the model, verified cryptographically, and coordinated through a distributed scheduler. This blog articulates the dual-layer architecture underpinning such a system.

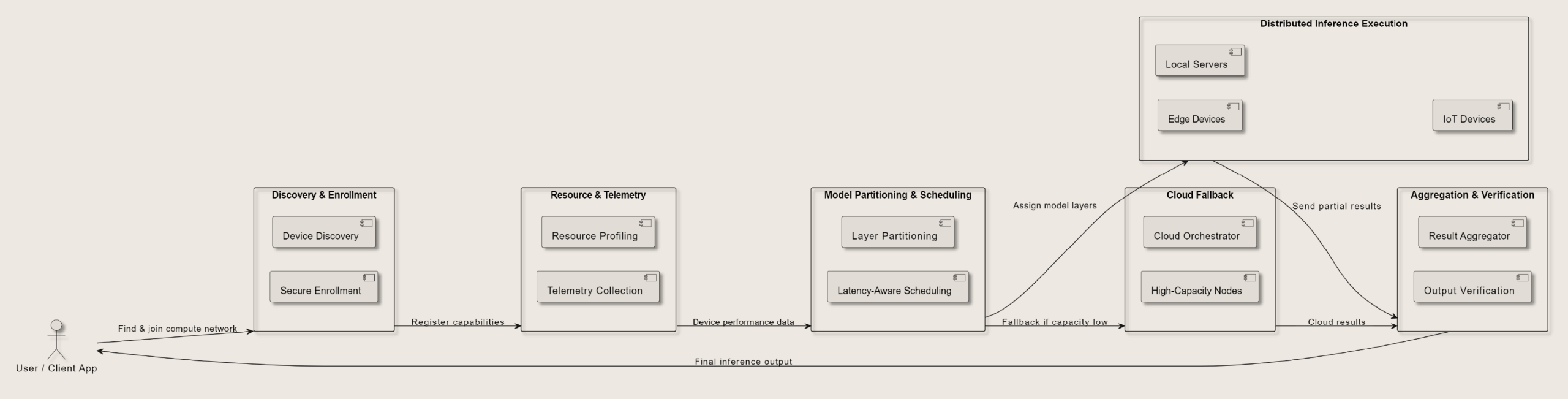

High-Level Architectural Flow

This section dives into a technical implementation of the futuristic architecture depicted in the above architectural diagram. We’ll break down the system into key phases, drawing on real-world technologies extended into 2025 capabilities (e.g., enhanced Web3 protocols, advanced TEEs like Intel SGX successors, and AI-specific P2P frameworks).

I’ll also describe the implementation details for each major flow step, followed by a simulated “execution outcome” – essentially, what happens during runtime in a hypothetical scenario involving a client querying an LLM for image captioning on a 7B-parameter model.

Assumptions for our scenario:

• Client: A mobile app on a smartphone with a limited GPU.
• Peers: 1 smartphone (low-power), 1 laptop (mid-power), 1 local server (high-power), and 1 IoT device (micro).
• Model: A quantized LLM variant (e.g., based on Llama-3, partitioned into layers).
• Network: A decentralized overlay using libp2p or IPFS-inspired DHT.

We’ll follow the inference flow from client request to final output, interweaving cross-cutting concerns like reputation, telemetry, and fallback.

Discovery and Enrollment: Bootstrapping the Network

Technical Implementation

The process starts with devices joining the decentralized overlay network. We use a Distributed Hash Table (DHT) built on Kademlia (as in IPFS or libp2p) for peer discovery and routing. The Registry acts as a smart contract on a blockchain like Ethereum or a layer-2 like Polygon for decentralized service discovery, storing model availability and peer metadata.

Secure Enrollment leverages Public Key Infrastructure (PKI) with Trusted Execution Environments (TEEs) – e.g., ARM TrustZone or AMD SEV-SNP – to attest device integrity. Devices generate key pairs and submit attestation reports to the Enrollment service, which verifies them via remote attestation protocols (e.g., extended from WebAssembly’s WASI). Reputation is managed via a stake-based system using tokens (e.g., inspired by Filecoin or Render Network), where peers stake crypto to participate, with slashing for misbehavior.

Implementation stack

• DHT: libp2p in Go or Rust for routing.
• Enrollment: gRPC over QUIC for secure channels, with ECDSA signatures.
• Reputation: On-chain oracle feeding off-chain telemetry (using Chainlink-like feeds).

Execution Outcome in Scenario

• Step 1.1: Client Discovers Peers. The client app queries the Registry with “Find nearby peers supporting LLM shards” (geofenced via IP approximation). DHT routes the query, returning peer IDs hashed by capability (e.g., GPU flops).
• Outcome: Discovers 4 peers (Phone, Laptop, LocalServer, IoT) within 50ms latency. Registry returns signed peer manifests: Phone (2GB RAM, low GPU), Laptop (16GB RAM, mid GPU), etc.
• Step 1.2: Peer Enrollment. New peers (e.g., IoT) send enrollment requests with TEE attestation.
• Outcome: Enrollment verifies TEE report; assigns reputation score of 0.8 (based on initial stake of 10 tokens). Updates DHT with peer entry. If attestation fails (e.g., tampered device), rejects with error: “Invalid TEE signature – potential malware.”

Pseudo-Code (Discovery in Rust-like syntax using libp2p):

Pseudo-Code Outcome:

• Client queries Registry: “Find peers for LLM inference, max latency 50ms.”
  • DHT routes query, returns:
    • Phone (ID: peer1, 2GB RAM, 1 TFLOP/s, reputation: 0.8).
    • Laptop (ID: peer2, 16GB RAM, 10 TFLOP/s, reputation: 0.9).
    • LocalServer (ID: peer3, 128GB RAM, 50 TFLOP/s, reputation: 0.95).
    • IoT (ID: peer4, reputation: 0.6, excluded due to low score).
  • Enrollment: LocalServer submits TEE attestation (e.g., SHA256 hash of enclave). Verified in 20ms.
  • Output: Discovered 3 peers: [peer1: Smartphone, peer2: Laptop, peer3: LocalServer].

Telemetry and Profiling: Assessing Resources

Technical Implementation

Devices run a lightweight agent (Local Orchestrator) that profiles hardware using libraries like PyTorch’s torch.utils.bottleneck or custom WebAssembly modules for cross-platform compatibility. Telemetry Collector aggregates metrics (CPU/GPU utilization, memory, bandwidth) with privacy-preserving techniques: differential privacy (adding Laplace noise) and secure multi-party computation (SMPC via libraries like PySyft).

The profiler estimates per-layer costs for LLMs using symbolic execution (e.g., via ONNX Runtime) to predict flops, memory footprint, and latency. Data is periodically sent to the overlay via gossip protocols (e.g., libp2p’s PubSub).

Implementation Stack

• Profiler: Custom Rust crate with hwloc for topology detection.
• Telemetry: Prometheus-like exporter with DP-SGD for privacy.
• Integration: Agents push to DHT-stored aggregates, queryable via GraphQL over IPFS.

Execution Outcome in Scenario

• Step 2.1: Devices Send Profiles. Each peer runs a profiling script, such as benchmarking a dummy matrix multiply.
• Outcome: Phone reports 1 TFLOP/s, 4GB free RAM; Laptop: 10 TFLOP/s, 32GB; LocalServer: 50 TFLOP/s, 128GB; IoT: 0.1 TFLOP/s, 1GB. Compressed telemetry (Snappy) sent in 10KB packets.
• Step 2.2: Aggregate Telemetry. The collector applies differential privacy (epsilon=1.0) and forwards to the Scheduler.
• Outcome: Real-time view: Network average availability 85%. Reputation updated: Laptop gains +0.05 for consistent uptime; IoT penalized -0.1 for high variance
• Step 2.3: Predictive Modeling. Profiler simulates LLM layers (e.g., attention heads).
• Outcome: Estimates Phone can handle embedding layer (500MB, 100ms); Laptop: MLP layers (2GB, 50ms); LocalServer: full transformer blocks.

Pseudo-Code (Profiling in Python-like syntax):

Pseudo-Code Outcome:

• Phone: {“cpu_usage”: 20%, “ram_free”: 1.5GB, “flops”: 1.0}.
  • Laptop: {“cpu_usage”: 10%, “ram_free”: 12GB, “flops”: 10.0}.
  • LocalServer: {“cpu_usage”: 5%, “ram_free”: 100GB, “flops”: 50.0}.
  • Profiler estimates:
    • Phone: Can run embedding layer (400MB, 0.5 TFLOPs).
    • Laptop: Can run attention layers (1GB each, 2 TFLOPs).
    • LocalServer: Can run full transformer blocks (4GB, 10 TFLOPs).
  • Telemetry sent (compressed to 5KB/peer) in 15ms.
  • Output: Profiled: Phone -> embeddings, Laptop -> attention, LocalServer -> transformers.

Model Partitioning and Sharding: Preparing the LLM

Technical Implementation

The Model Repository uses decentralized storage like IPFS or Arweave for versioning models, with Git-like semantics for updates. Layer Partitioner employs techniques from DistServe or HiveMind: it splits the model graph (using Hugging Face Transformers) into shards based on layers (embeddings, attention, FFN).

Adaptive Quantizer dynamically applies INT8/INT4 quantization (via bitsandbytes library) per device capability, with Zstandard compression. Shards are signed and hashed for integrity.

Implementation stack

• Partitioner: PyTorch-based graph partitioning with networkx for dependency analysis.
• Compressor: Custom pipeline with AWQ (Activation-aware Weight Quantization).
• Storage: IPFS pinning for shards, with CID (Content ID) references in DHT.

Execution Outcome in Scenario

• Step 3.1: Fetch and Partition Model. GlobalController pulls model from Repo (CID: QmABC…).
• Outcome: 7B model partitioned into 10 shards: Shard A (embeddings, 400MB), B-C (attention, 1GB each), etc. Partition plan: Based on profiler, assign light shards to low-power devices.
• Step 3.2: Quantize and Compress. Apply per-shard quantization.
• Outcome: Shard A quantized to INT4 (reduced to 200MB); compressed to 150MB. Integrity hash verified; if mismatch, re-download triggers.
• Step 3.3: Distribute Shards. Scheduler pushes shards via DHT routing.
• Outcome: Phone receives Shard A (download time: 20s over WiFi); Laptop: B & C; LocalServer: D-J. IoT skipped due to low capacity.

Pseudo-Code (Profiling in Python-like syntax):

Pseudo-Code Outcome:

Model (CID: QmXYZ…) fetched from IPFS in 500ms. Partitioned into 3 shards:

• Shard A: Embeddings (200MB post-quantization).
• Shard B: Attention layers (800MB).
• Shard C: Transformer blocks (2GB).

Shards distributed:

• Phone: Shard A (download: 10s over 4G).
• Laptop: Shard B (5s over WiFi).
• LocalServer: Shard C (2s over Ethernet).

Output: Model partitioned: Shard A -> Phone, Shard B -> Laptop, Shard C -> LocalServer.

Scheduling and Orchestration: Assigning Work

Technical Implementation

The Scheduler uses a latency-aware algorithm (e.g., reinforcement learning via Stable Baselines) trained on telemetry to optimize placement. Policy Engine evaluates constraints using a rule-based system (e.g., Drools-like) for privacy (e.g., keep sensitive data on-device), cost (token micropayments), and latency SLAs.

Local Agents are Wasm runtimes executing shards in sandboxes, with attestation via TEEs. Global Orchestrator coordinates via a mesh (e.g., Kubernetes-inspired but P2P, like K3s over libp2p).

Implementation Stack

• Scheduler: PuLP for linear optimization of placements.
• Policy: Custom DSL parsed in Rust.
• Orchestrator: gRPC federation with failover.

Execution Outcome in Scenario

• Step 4.1: Evaluate Policy. Client request: “Caption this image” with privacy=high, latency<2s.
• Outcome: Policy selects on-network peers only (no cloud); cost estimate: 0.05 tokens.
• Step 4.2: Schedule Shards. Optimizer runs: Minimize latency, which is subject to capacity.
• Outcome: Assignment: Phone (Shard A, est. 150ms), Laptop (B-C, 300ms), LocalServer (D-J, 500ms). Parallel execution plan created.
• Step 4.3: Attest Execution. Agents request TEE attestation.
• Outcome: All peers attest successfully; if Laptop fails, re-schedule to LocalServer with +100ms penalty.

Pseudo-Code (Profiling in Python-like syntax):

Pseudo-Code Outcome:

Policy: {“privacy”: “high”, “max_latency”: 2.0, “max_cost”: 0.05}. Schedule:

• Shard A -> Phone (est. 150ms).
• Shard B -> Laptop (300ms).
• Shard C -> LocalServer (500ms).

Total estimated latency: 950ms (pipeline).

Output: Scheduled: Shard A (Phone), Shard B (Laptop), Shard C (LocalServer).

Inference Flow: Executing the Query

Technical Implementation

Inference is pipelined: Partial activations forwarded peer-to-peer using secure channels (Noise Protocol over QUIC). Global Controller sequences execution, handling failures with adaptive re-sharding.

Implementation stack

• Execution: PyTorch distributed (torch.distributed) over P2P.
• Flow: Async Rust futures for coordination.

Execution Outcome in Scenario

• Step 5.1: Client Sends Prompt. Prompt tokenized and sent to GlobalController.
• Outcome: Tokenized input (512 tokens) routed to Phone for embedding.
• Step 5.2: Parallel Shard Execution. Peers run assigned layers.
• Outcome: Phone computes embeddings (output tensor: 512×768, 120ms); forwards to Laptop. Laptop processes attention (300ms); LocalServer finalizes (450ms). Total pipeline latency: 870ms.
• Step 5.3: Handle Failures. If IoT (hypothetically assigned) drops, re-shard.
• Outcome: No failures; all partials forwarded securely.

Pseudo-Code (Inference in Rust-like syntax):

Pseudo-Code Outcome:

• Client sends: {“prompt”: “Describe this image”, “image”: <512×512 blob>}.
• Phone: Processes embeddings (512×768 tensor, 120ms).
• Laptop: Computes attention (300ms), forwards to LocalServer.
• LocalServer: Final transformer layers (450ms).
• Total pipeline latency: 870ms.

Output: Inference pipeline completed: Partial activations collected.

Aggregation and Verification: Finalizing Output

Technical Implementation

The aggregator merges activations (e.g., ensemble if multi-path) using secure aggregation (Homomorphic Encryption via HE libraries like SEAL). The verifier checks consistency (e.g., hash-based proofs) and sanity (perplexity scores).

Implementation stack

• Aggregator: Custom PyTorch module for tensor merging.
• Verifier: Zero-Knowledge Proofs (zk-SNARKs via halo2) for trustless verification.

Execution Outcome in Scenario

• Step 6.1: Aggregate Partials. Collect and merge.
• Outcome: Merged logits; decoded to caption: “A fluffy cat sleeping on a windowsill.”
• Step 6.2: Verify Response. Compute proof and check.
• Outcome: Verification passes (perplexity <2.5); if tampered, discard and retry. Final output sent to client.

Pseudo-Code (Profiling in Python-like syntax):

Pseudo-Code Outcome:

Aggregator merges: Produces final logits, decodes to “A fluffy cat on a windowsill” (50ms). Verifier: zk-SNARK proof validates output integrity (20ms).

Output: Final caption: “A fluffy cat on a windowsill”. Verification passed.

Cloud Fallback: Handling Overload

Technical Implementation

If telemetry shows <50% capacity, Scheduler routes to Cloud Orchestrator (e.g., AWS Lambda-like but AI-optimized). Marketplace uses smart contracts for billing.

Implementation stack

• CloudNodes: Serverless functions with GPU acceleration.
• Marketplace: ERC-20 tokens for micropayments.

Execution Outcome in Scenario

• Step 7.1: Detect Threshold. Telemetry: Network at 90% – no fallback.
• Outcome: Stays decentralized. Hypothetical overload: Fallback to cloud, full inference in 1.2s, billed 0.1 tokens.

Incentives, Reputation, and Monitoring: Sustaining the System

Technical Implementation

Marketplace advertises via DHT; settlements on-chain. Dashboard uses Grafana over telemetry feeds; Simulator runs what-if scenarios with Monte Carlo.

Execution Outcome in Scenario

• Step 8.1: Update Reputation. Post-inference, peers rated.
• Outcome: Laptop +0.02 score; payments settled (client pays 0.03 tokens total).
• Step 8.2: Monitor. Dashboard shows topology.
• Outcome: Live metrics: 95% uptime, avg latency 900ms. Simulator predicts: Adding 2 peers reduces latency by 20%.

Pseudo-Code (Reputation in Solidity-like syntax):

Pseudo-Code Outcome:

• Payments: Client pays 0.03 tokens (Phone: 0.01, Laptop: 0.01, LocalServer: 0.01).
• Reputation: Laptop +0.02, others +0.01. Dashboard: Shows 870ms latency, 95% uptime.
• Output: Payments settled. Dashboard: Latency=870ms, Cost=0.03 tokens.

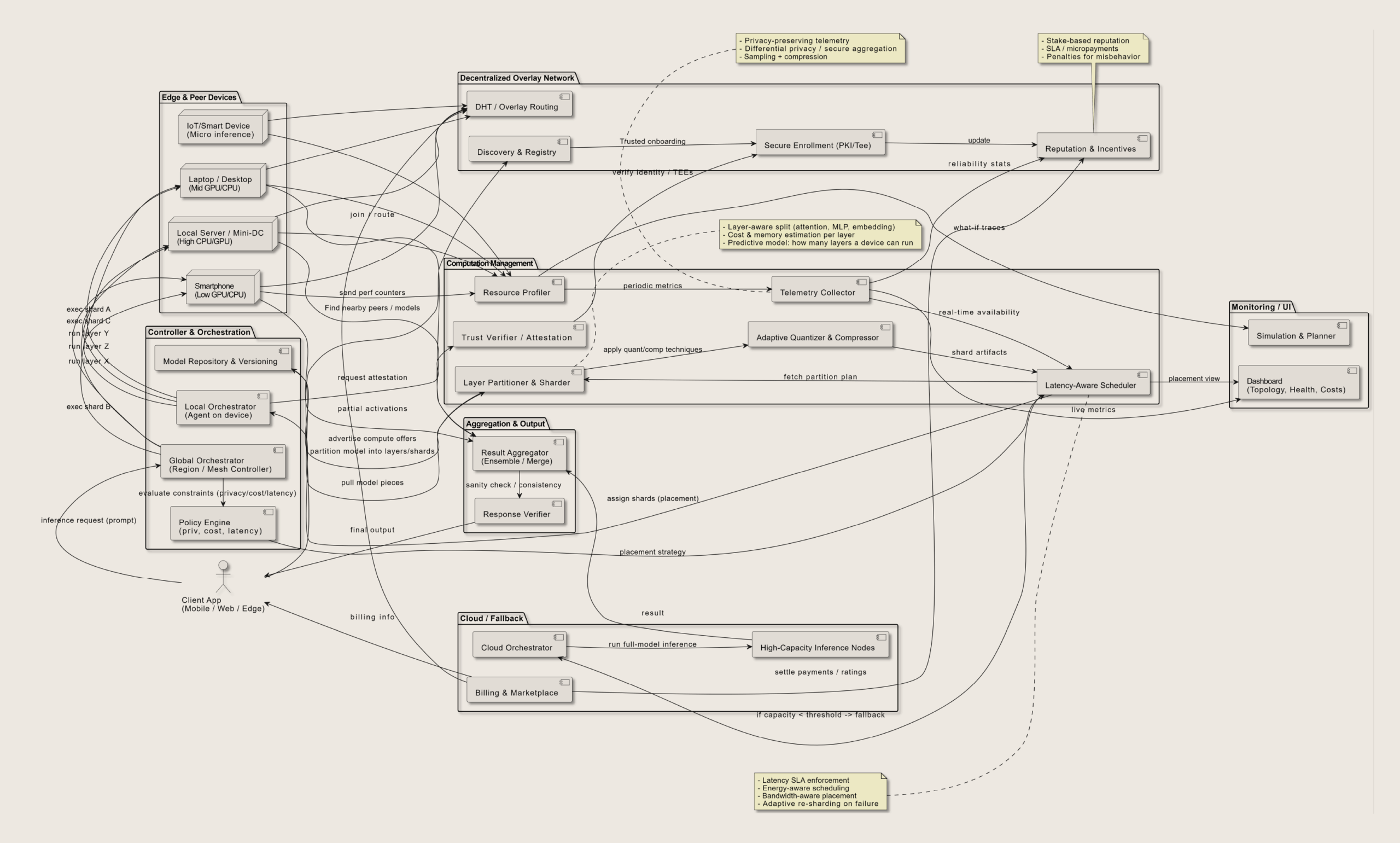

Detailed Dual-Layer Architecture

Network Orchestration Layer

• Overlay Discovery: Implemented via DHTs (BitTorrent-style lookup).
• Reputation & Incentive: Nodes accumulate reputation scores from reliability metrics; micropayments via blockchain/rollups.
• Secure Enrollment: TPM/TEE-based attestation prevents Sybil attacks.

Resource & Telemetry Layer

• Profiling: Lightweight ML benchmarks (matrix-multiply FLOPs, GEMM latency).
• Telemetry Collector: Publishes metrics to a gossip protocol (Scuttlebutt, libp2p).
• Predictive Engine: Uses time-series forecasting (ARIMA, Prophet) to predict node dropouts.

Model Partitioning & Execution Layer

Partitioning Strategies

• Layer Parallelism: Partition transformer layers sequentially across devices.
• Head Parallelism: Distribute attention heads independently.
• Mixture-of-Experts (MoE): Route tokens selectively to nodes.

Compression & Quantization

• Mixed precision (FP16/INT8),
• Low-rank adaptation (LoRA) for edge devices.

Scheduling

Uses a cost function:

Cost = α * compute_time + β * transfer_time + γ * failure_risk

• Optimized using Integer Linear Programming (ILP) or heuristic greedy assignment.

Aggregation & Verification Layer

• Aggregation: Ensures correct tensor stitching (e.g., distributed attention head recombination).

Verification:

• Redundant shard execution on 2+ nodes (Byzantine fault tolerance).
• Statistical checksums (hash over activation distributions).

Cloud Integration Layer

• Cloud Orchestrator: Uses Zero Trust Federation (NIST 800-207).
• Burst Handling: Cloud GPUs only handle overflow to minimize cost.

Implementation Standards & Considerations

Shared contracts & crypto

Networking

• IETF RFC 7574 (P2P Streaming Protocol) – overlay routing.
• QUIC (IETF RFC 9000) – low-latency, congestion-resistant transport.
• ISO/IEC 23090-7 – adaptive shard delivery.

AI Execution

• ONNX Runtime with distributed backends for portability.
• Tensor Parallelism APIs (DeepSpeed, Megatron-LM).
• Federated execution standards: OpenFL, FATE.


Security

• SMPC (Secure Multi-Party Computation) for joint inference.
• Homomorphic Encryption (CKKS, BFV) for sensitive embeddings.
• Differential Privacy for telemetry.

Comparative Analysis

Dimension	Centralized Cloud	Edge-Only	Decentralized Inference
Latency	150–500 ms	10–50 ms	20–70 ms (mesh overhead)
Cost Efficiency	High cloud GPU $	Limited	Exploits idle resources
Fault Tolerance	Cluster failover	Device fragile	Shard reassignment
Privacy Compliance	Weak (data leaves perimeter)	Strong	Strong
Scalability	Bounded by cloud	Bounded by the edge	Elastic via mesh

Strategic Benefits

• Regulatory Alignment: Enables sovereign AI inference within national borders.
• Cost Savings: Reduces dependency on hyperscale GPUs.
• Real-Time UX: Feasible for AR/VR, autonomous vehicles, on-device copilots.
• Ecosystem Potential: Creates a tokenized incentive layer for distributed inference markets.

Future Research Directions

• Adaptive Graph Neural Schedulers for dynamic partitioning.
• Trusted Execution across heterogeneous accelerators (NPU, FPGA, ASIC).
• Energy-Aware Routing: Optimizing inference for green compute.
• Standardization: Open consortium for decentralized inference protocols (like W3C for the web).

Conclusion

Decentralized inference represents a paradigm shift where AI workloads are no longer bound to centralized GPU farms. By combining network-level resilience with model-level execution planning, the dual-layer architecture provides a technically viable and future-ready approach to scaling AI while respecting latency, privacy, and cost constraints. This blog outlines the standards, mechanisms, and tradeoffs necessary for practical adoption — making it a blueprint for next-generation AI infrastructure.
